Quartz Fiber Braided sleeve
1.Product Introduction

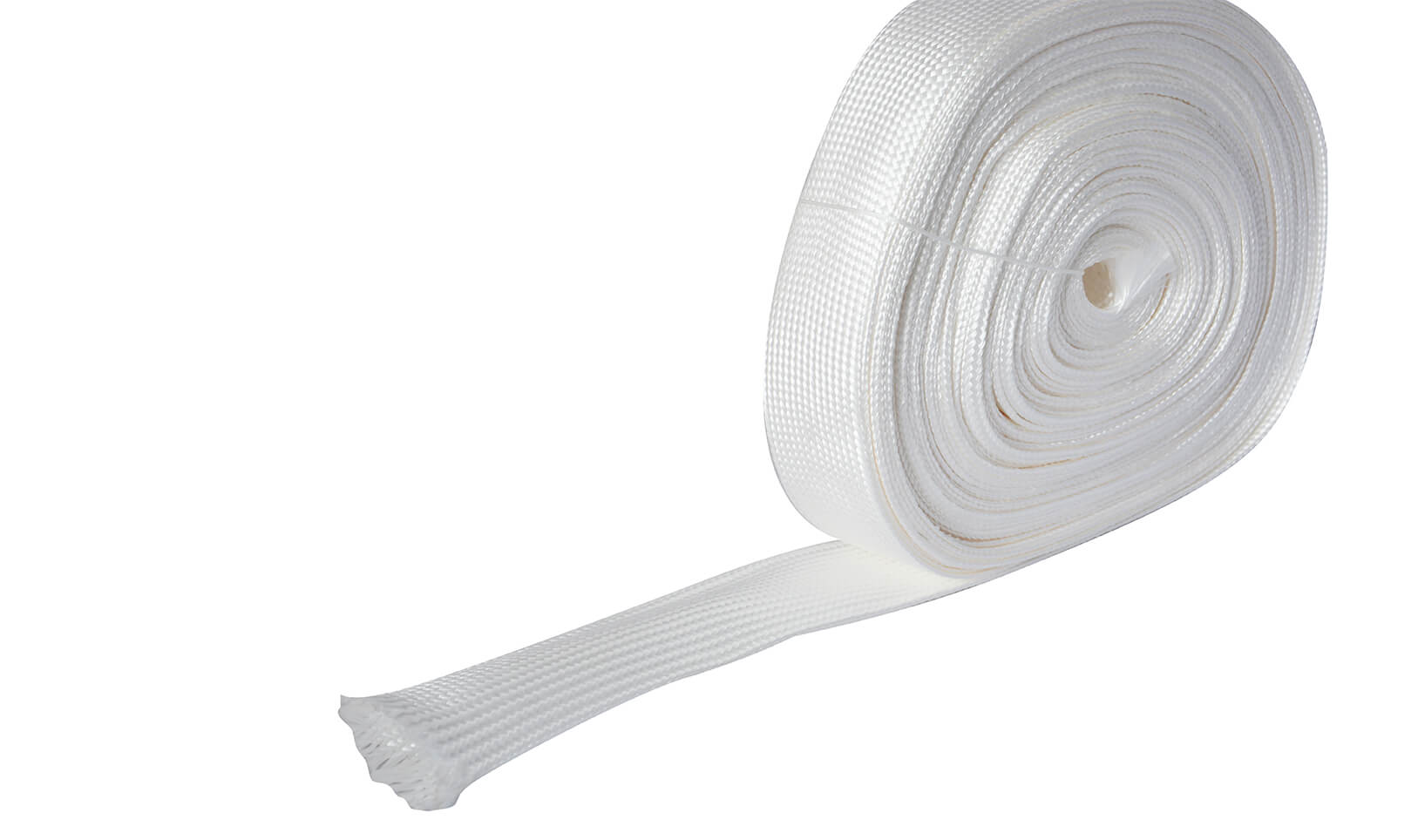

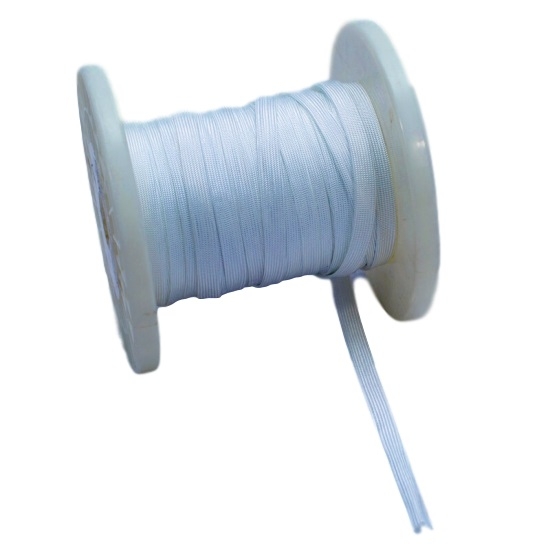

ZBAO Quartz Fiber Braided sleeve is braided by Quartz fiber, SiO2≥99.9%. This fire sleeve is outstanding high temperature resistant and outstanding electrical insulation properties. Its dielectric constant and dielectric loss factor is the best of all Mineral fiber.Working temperature: Continues working at 1050℃, short term 1700℃.
ZBAO Quartz Sleeve is widely used in aerospace, military industry, semiconductor, oil chemical industry, building construction, electrical and electronic as thermal insulation and high temperature filtration material.
2.Product Characters
Size/inner diameter
0.5mm-70mm
Material
Sio2 Fiber
Colour
White
Working temperature
1050℃
Character
Smooth, soft, extreme high tempt. & flame resistant, high insulation, low friction
coefficient ,chemical resistant，avoiding splashing of the molten iron and electric
spark.
3.Standard Specifications
ZBAO Part No.
Inner diameter/mm
Weight(g/m)
Roll Length/m
ZBQF-S-1
1
1.7
50-100
ZBQF-S-2
2
2.7
ZBQF-S-3
3
3.4
ZBQF-S-5
5
5.2
ZBQF-S-8
8
7.09
ZBQF-S-10
10
10.7
ZBQF-S-15
15
20.5
ZBQF-S-20
20
30
ZBQF-S-22
22
35
ZBQF-S-25
25
40.5
ZBQF-S-30
30
46.3
ZBQF-S-35
35
53
30-50
ZBQF-S-40
40
59.7
ZBQF-S-45
45
66.5
ZBQF-S-50
50
74
ZBQF-S-55
55
83
ZBQF-S-60
60
90.5
ZBQF-S-65
65
110
ZBQF-S-70
70
132
