Heat Reflective Fiberglass Sleeve
1.Product Introduction

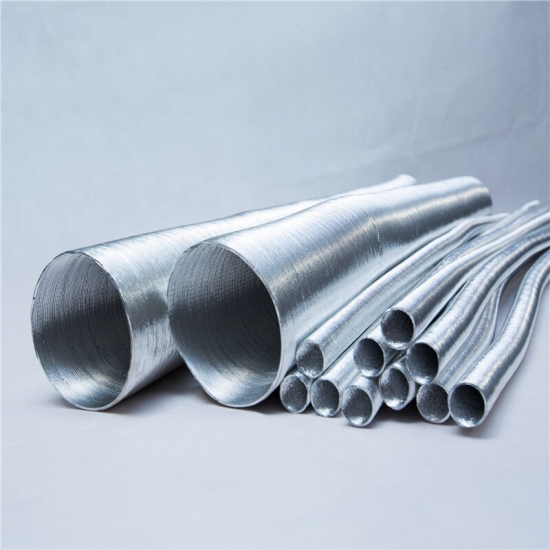

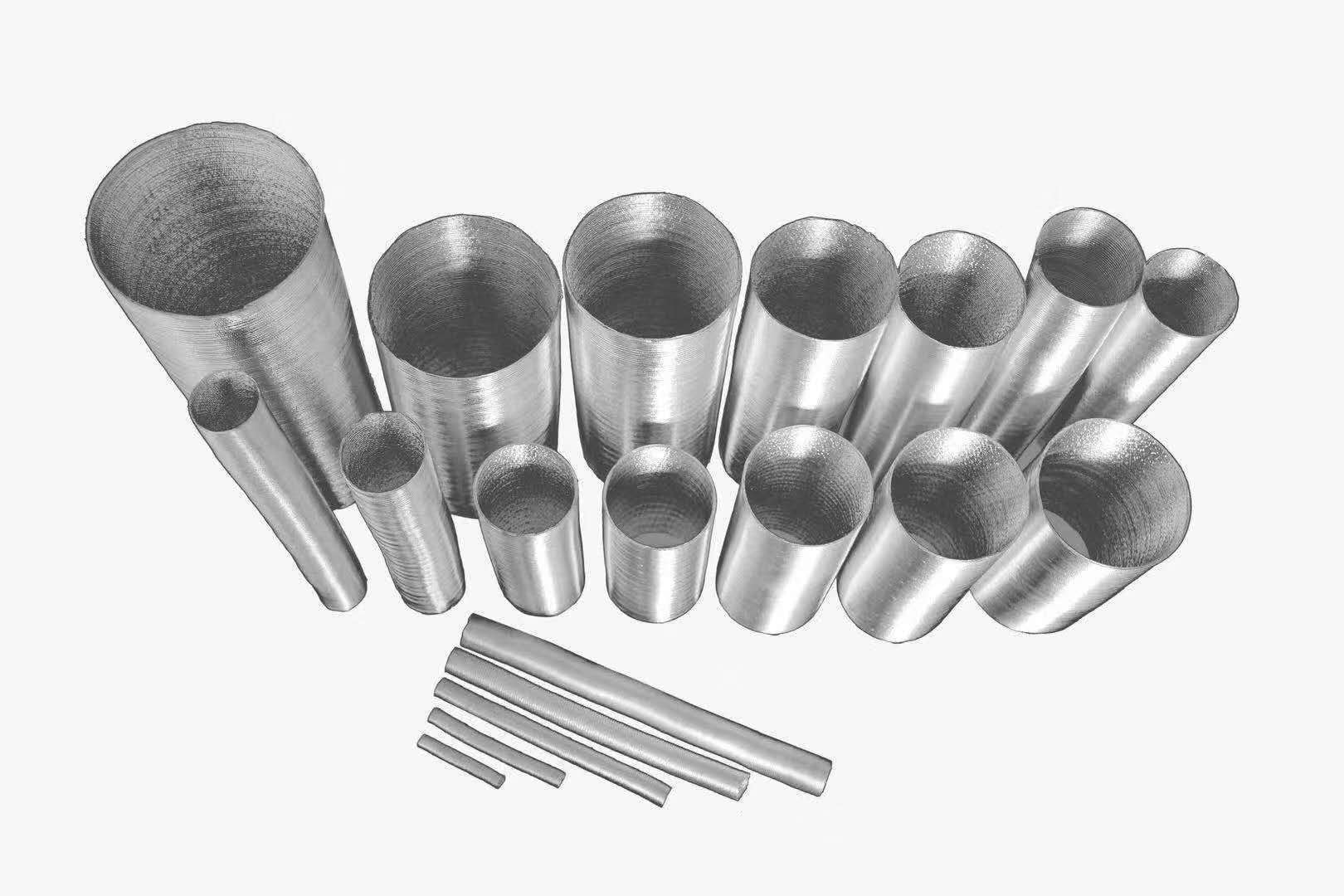

ZBAO Heat Reflective Fiberglass Sleeve is made of glass fiber and aluminium foil.
It is a kind of water/oil resistant, anti-aging,high heat resistant hose protector;180-degree free bending, no flanging off-layer or deformation when it is compressed or elongated.
It is widely used to control cables, gear cables, cooling tubes, air conditioning and ventilation pipes, fuel hoses, wire sets and heat sensitive parts for Protection;also can be used on the copper pipes which are used for shifter cables, speed indicator cables, hydraulic systems, electrical cables and LPG systems for Protection purposes.
Continuous Working Temperature is -40~350℃.

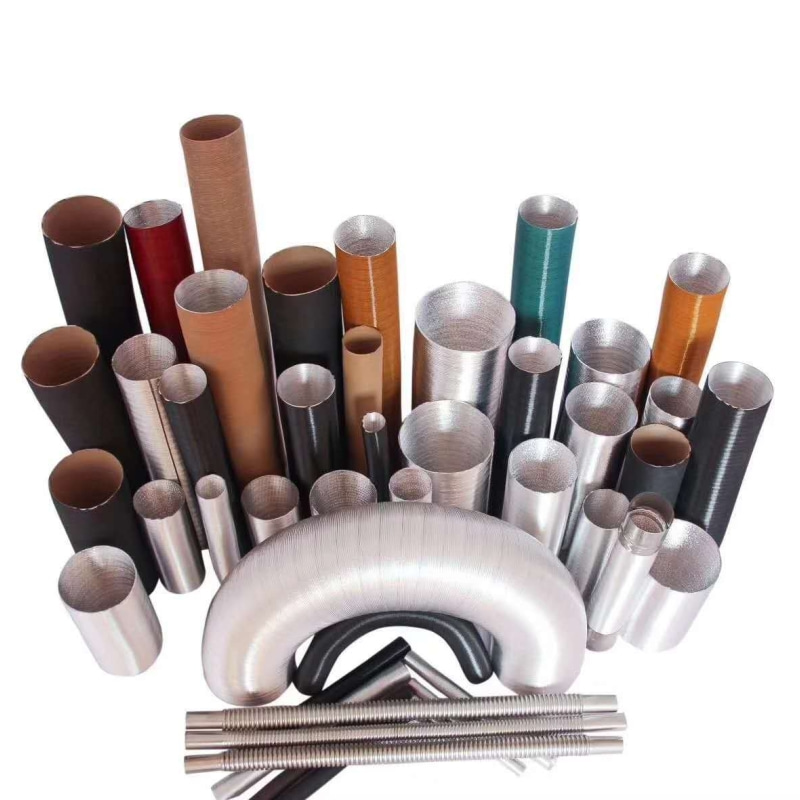

Structure of Heat Reflective Fiberglass Sleeve:
☼Aluminum foil + glass fiber cloth + aluminum foil
☼Aluminum + kraft + aluminum foil
☼Black PVC+ aluminum + kraft
☼kraft +aluminum foil + kraft
☼Aluminum foil + glass fiber cloth + aluminum foil+ glass fiber cloth
2.Standard Specifications
|
ZBAO Part No. |
Inner Dia./mm |
Wall Thickness/mm |
Regular Length/m |
|
ZBAL-C-08 |
8 |
1.5 |
1 |
|
ZBAL-C-10 |
10 |
1.5 |
1 |
|
ZBAL-C-12 |
12 |
1.5 |
1 |
|
ZBAL-C-15 |
15 |
1.5 |
1 |
|
ZBAL-C-20 |
20 |
1.5 |
1 |
|
ZBAL-C-22 |
22 |
1.6 |
1 |
|
ZBAL-C-25 |
25 |
1.6 |
1 |
|
ZBAL-C-30 |
30 |
1.6 |
1 |
|
ZBAL-C-32 |
32 |
1.6 |
1 |
|
ZBAL-C-35 |
35 |
1.6 |
1 |
|
ZBAL-C-40 |
40 |
1.6 |
1 |
|
ZBAL-C-50 |
50 |
1.8 |
1 |
|
ZBAL-C-55 |
55 |
1.8 |
1 |
|
ZBAL-C-60 |
60 |
2.0 |
1 |
|
ZBAL-C-65 |
65 |
2.0 |
1 |
|
ZBAL-C-70 |
70 |
2.0 |
1 |
|
ZBAL-C-75 |
75 |
2.1 |
1 |
|
ZBAL-C-80 |
80 |
2.2 |
1 |
|
ZBAL-C-85 |
85 |
2.2 |
1 |
|
ZBAL-C-90 |
90 |
2.4 |
1 |
|
ZBAL-C-100 |
100 |
2.4 |
1 |
