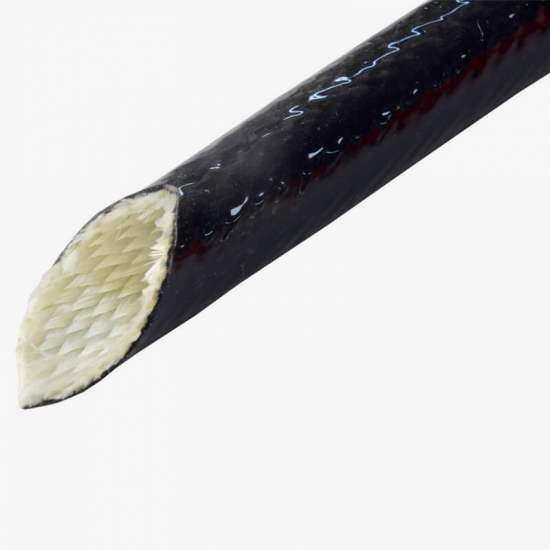

Fireproof/Anti-fire Fiberglass Insulation Sleeving
1.Product Introduction
Fireproof/Anti-fire Fiberglass Insulation Sleeving is made of braided e-grade glass fiber sleeve with silicone rubber coating, it is designed as a kind of heavy duty pyrojacket to protect different kinds of hoses, wires and cables from the hazards of high heat and occasional flame.
Fire and High temperature resistant Fire Sleeve shed molten metal splash in steel plants, glass plants, foundries, cutting and welding shops.
Good thermal insulation and fire proof performance make Fire Sleeve reduce heat energy losses and protect employees from burning effectively.
2.Product Characters
Materials
E-grade fiberglass and Silicone rubber
Size/inner diameter
From 6mm (1/4”) to 150mm(6”),other size customized
Rate voltage
7kv--25kv,it depends on different size and wall thickness.
Flammability
VW-1
Working temperature
Continues working under 260℃,short time exposure to 1650℃.
Colour
Standard iron oxide red,other colors blue,yellow,silver,black etc are available.
Properties
High temperature and flame resistant,
Thermal insulation,
Anti-fire,anti-aging,
Shield the splashing of the molten metal,
Abrasion resistant,water proof,oil proof,acid and alkali resistant.
Application Industries
Metals(Iron&steel),Foundries,Transportation(Aerospace,Auto,Rail vehicles,Heavy Equipment,Marine),Oil & Gas,Power industry,etc
How to use
Cover fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer.
Purpose
Fire sleeve for protect hose,wires,lines and cables,
Reduce heat energy losses;
Protect employees from burning effectively.
3.Specifications
Part No.
Inner Dia.
Wall Thickness
Roll Length/mtr
mm
inch
ZBAO06
6
1/4
1.5
20
ZBAO08
8
5/16
1.6
20
ZBAO10
10
3/8
1.8
20
ZBAO12/13
13
1/2
1.9
20
ZBAO15
15
5/8
2.1
20
ZBAO20
20
3/4
2.4
20
ZBAO22
22
7/8
2.5
20
ZBAO25
25
1
2.6
20
ZBAO30
30
11/8
2.9
20
ZBAO32
32
11/4
3
20
ZBAO35
35
13/8
3.1
20
ZBAO38
38
11/2
3.2
20
ZBAO40
40
15/8
3.4
20
ZBAO45
45
13/4
3.4
20
ZBAO50
50
2
3.6
20
ZBAO55
55
21/4
3.7
20
ZBAO60
60
23/8
3.8
20
ZBAO65
65
21/2
3.8
20
ZBAO70
70
23/4
4
20
ZBAO75
75
3
4.1
20
ZBAO80
80
31/8
4.3
15
ZBAO85
85
31/4
4.3
15
ZBAO90
90
31/2
4.5
15
ZBAO95
95
33/4
4.5
15
ZBAO100
100
4
4.6
15
ZBAO105
105
41/8
4.7
10
ZBAO110
110
43/8
4.7
10
ZBAO115
115
41/2
4.7
10
ZBAO120
120
43/4
4.8
10
ZBAO125
125
5
4.8
10
ZBAO130
130
51/8
5
10
ZBAO140
140
51/2
5.2
10
ZBAO150
150
6
5.2
10
