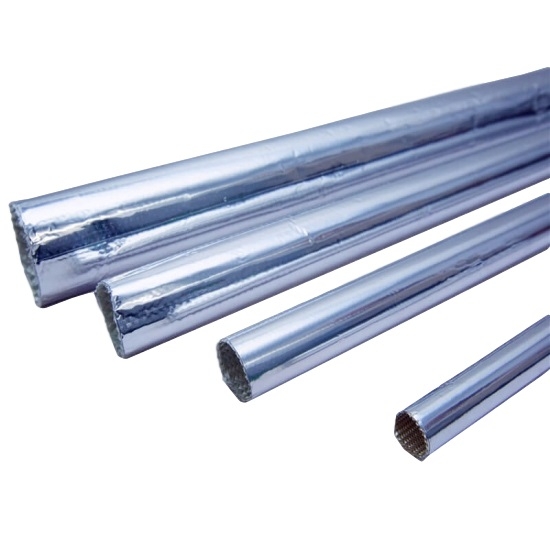

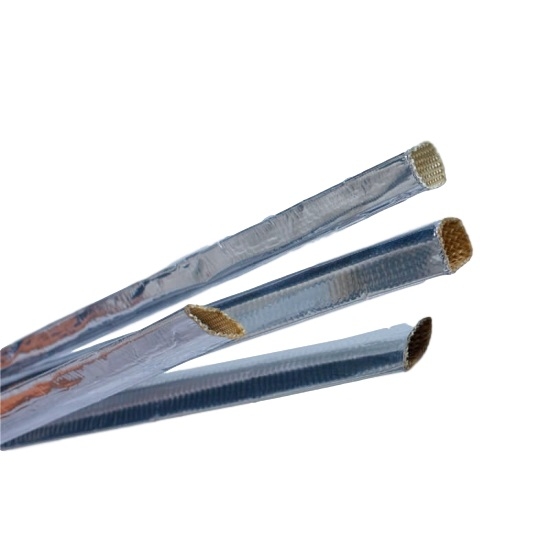

Aluminum Foil Fiberglass Sleeve
1.Product Introduction
ZBAO Aluminium Foil Fiberglass Sleeve is made of glass fiber and aluminium foil.It has outstanding reflectivity to the heat and ray.
Protects from radiant heat by reflecting 90% of the heat that contacts its surface.The aluminum layers will not delaminate from the glassfiber,even under the most extreme heat conditions.Excellent rediant heat reflection provides good protections to the hoses,cables,wires and such kind of pipelines,which are working under high heat conditions;Low heat conductivity to keep the underlying pipelines cool. It is widely used as an excellent automotive under-the-hood protection.
Continues Working Temperature: 550℃
2.Standard Specifications
|
ZBAO Part No. |
Inner Dia./mm |
Wall Thickness/mm |
|
ZBAL-S-05 |
5 |
0.6 |
|
ZBAL-S-06 |
6 |
0.6 |
|
ZBAL-S-08 |
8 |
0.6 |
|
ZBAL-S-10 |
10 |
0.6 |
|
ZBAL-S-12 |
12 |
0.7 |
|
ZBAL-S-15 |
15 |
0.7 |
|
ZBAL-S-20 |
20 |
0.8 |
|
ZBAL-S-22 |
22 |
0.8 |
|
ZBAL-S-25 |
25 |
0.9 |
|
ZBAL-S-30 |
30 |
0.9 |
|
ZBAL-S-32 |
32 |
0.9 |
|
ZBAL-S-35 |
35 |
1 |
|
ZBAL-S-40 |
40 |
1 |
|
ZBAL-S-50 |
50 |
1 |
|
ZBAL-S-55 |
55 |
1.2 |
|
ZBAL-S-60 |
60 |
1.3 |
|
ZBAL-S-65 |
65 |
1.3 |
