1.Product Introduction

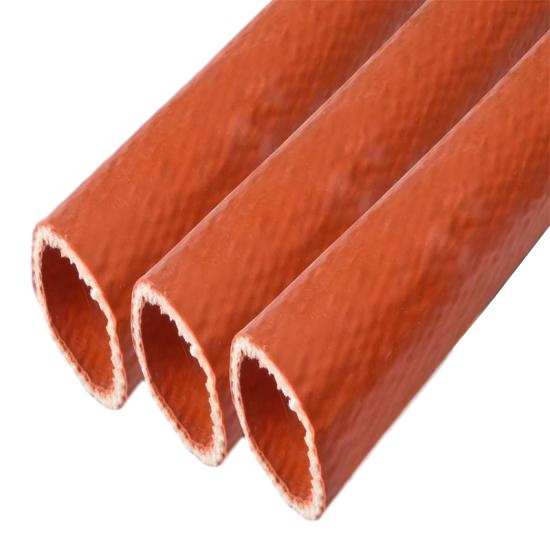

New Fire Sleeve is made of 3 layers, E-glass fiber is in the middle, inner and out layer both are silicon rubber, it can stand stereo, more easier to operate.
More thicker silicon rubber coating provide high level breakdown voltage-widely used as cable protection cover.
It can shed molten metal splash in steel plants, glass plants, foundries, cutting and welding shops.
Good thermal insulation and fire proof performance make Fire Sleeve reduce heat energy losses and protect employees from burning effectively.
2.Product Characters
Materials |
E-grade fiberglass and Silicon rubber |
Size/inner diameter |
20mm to 100mm |
Rate voltage |
More than 10kv |
Flammability |
VW-1 |
Working temperature |
Continues working under 260℃,short time exposure to 1650℃. |
Colour |
Standard iron oxide red,other colors are available. |
Properties |
High temperature and flame resistant, Thermal insulation, Anti-fire,anti-aging, Shield the splashing of the molten metal, Abrasion resistant,water proof,oil proof,acid and alkali resistant. |
Application Industries |
Metals(Iron&steel),Foundries,Transportation(Aerospace,Auto,Rail vehicles,Heavy Equipment,Marine),Oil & Gas,Power industry,etc |
How to use |
Cover fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer. |
Purpose |
Fire sleeve for protect hose,wires,lines and cables, Reduce heat energy losses; Protect employees from burning effectively. |
