Velcro Aluminium Foil Fiberglass Fire Sleeve
1.Product Introduction

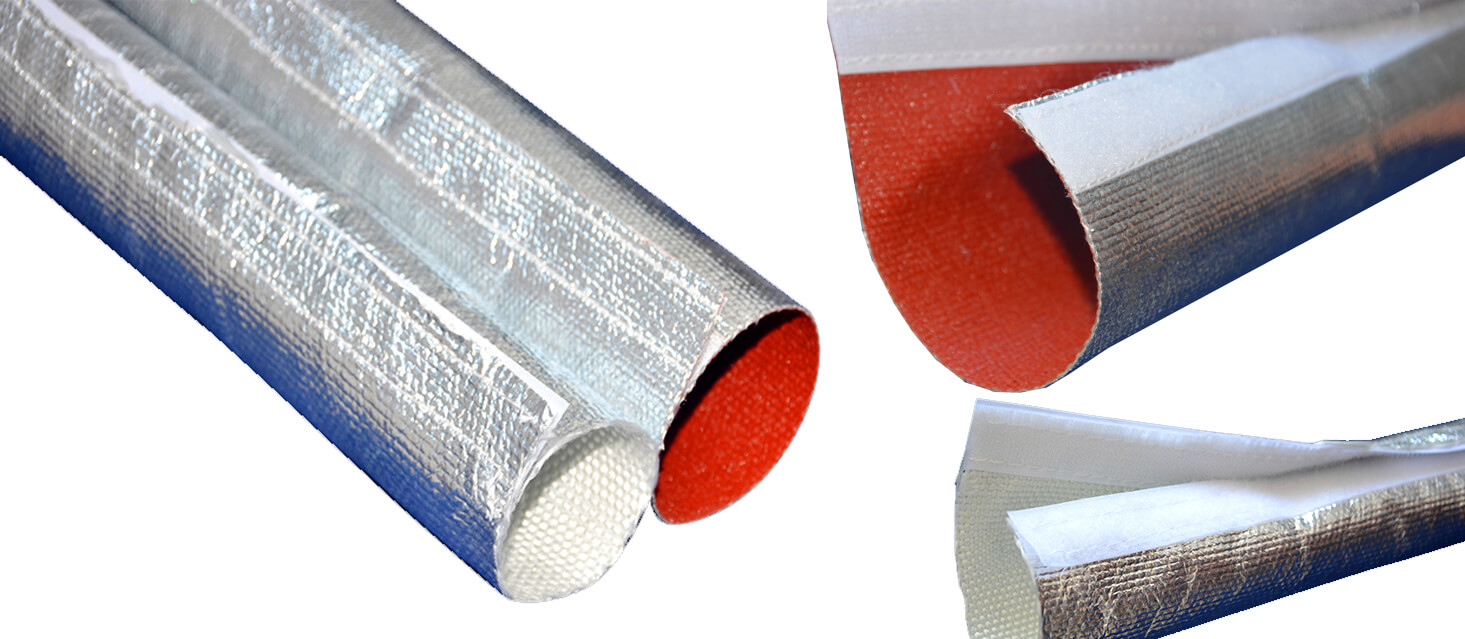

ZBAO Velcro Style Aluminium Foil Fiberglass Sleeve is constructed by slited aluminum foil glass fiber blanket,stitched the edges with hook and loop closure.Excellent rediant heat reflection provides good protection to the hoses,cables,wires and kind of pipelines,which work under high heat conditions.
Low heat conductivity to keep the underlying pipelines cool.Heat reflective Aluminum foil fiberglass sleeve is widely used as an excellent automotive under-the-hood protection.The velcro closure is designed for easily installation and disassembly without disconnect the device or circuit.
Working Temperature: 550℃.
2.Standard Specifications
|
ZBAO Part No. |
Inner Dia./mm
|
Wall Thickness/mm |
Standard Length/m |
|
ZBAL-VL-15 |
15 |
1/2/3 |
10 |
|
ZBAL-VL-20 |
20 |
1/2/3 |
10 |
|
ZBAL-VL-25 |
25 |
1/2/3 |
10 |
|
ZBAL-VL-30 |
30 |
1/2/3 |
10 |
|
ZBAL-VL-35 |
35 |
1/2/3 |
10 |
|
ZBAL-VL-40 |
40 |
1/2/3 |
10 |
|
ZBAL-VL-45 |
45 |
1/2/3 |
10 |
|
ZBAL-VL-50 |
50 |
1/2/3 |
10 |
|
ZBAL-VL-55 |
55 |
1/2/3 |
10 |
|
ZBAL-VL-60 |
60 |
1/2/3 |
10 |
|
ZBAL-VL-65 |
65 |
1/2/3 |
10 |
|
ZBAL-VL-70 |
70 |
1/2/3 |
10 |
|
ZBAL-VL-75 |
75 |
1/2/3 |
10 |
|
ZBAL-VL-80 |
80 |
1/2/3 |
10 |
|
ZBAL-VL-85 |
85 |
1/2/3 |
10 |
|
ZBAL-VL-90 |
90 |
1/2/3 |
10 |
|
ZBAL-VL-95 |
95 |
1/2/3 |
10 |
|
ZBAL-VL-100 |
100 |
1/2/3 |
10 |
