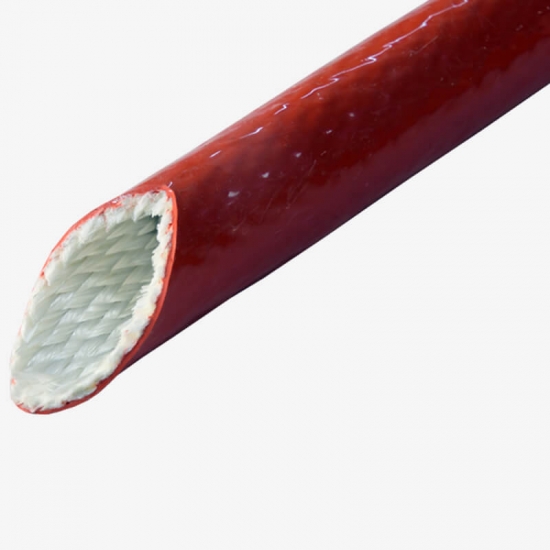

Heat Resistant Fire Sleeve
1.Product Introduction
Fire Sleeve is made of braided e-grade glass fiber sleeve with silicone rubber coating, it is designed as a kind of heavy duty pyrojacket to protect different kinds of hoses, wires and cables from the hazards of high heat and occasional flame.
Fire and High temperature resistant Fire Sleeve shed molten metal splash in steel plants, glass plants, foundries, cutting and welding shops.
Good thermal insulation and fire proof performance make Fire Sleeve reduce heat energy losses and protect employees from burning effectively.
2.Product Characters
|
Materials |
E-grade fiberglass and Silicone rubber |
|
Size/inner diameter |
From 6mm (1/4”) to 150mm(6”),other size customized |
|
Rate voltage |
7kv--25kv,it depends on different size and wall thickness. |
|
Flammability |
VW-1 |
|
Working temperature |
Continues working under 260℃,short time exposure to 1650℃. |
|
Colour |
Standard iron oxide red,other colors blue,yellow,silver,black etc are available. |
|
Properties |
High temperature and flame resistant, Thermal insulation, Anti-fire,anti-aging, Shield the splashing of the molten metal, Abrasion resistant,water proof,oil proof,acid and alkali resistant. |
|
Application Industries |
Metals(Iron&steel),Foundries,Transportation(Aerospace,Auto,Rail vehicles,Heavy Equipment,Marine),Oil & Gas,Power industry,etc |
|
How to use |
Cover fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer. |
|
Purpose |
Fire sleeve for protect hose,wires,lines and cables, Reduce heat energy losses; Protect employees from burning effectively. |
3.Specifications
|
Part No. |
Inner Dia. |
Wall Thickness |
Roll Length/mtr |
|
|
mm |
inch |
|||
|
ZBAO06 |
6 |
1/4 |
1.5 |
20 |
|
ZBAO08 |
8 |
5/16 |
1.6 |
20 |
|
ZBAO10 |
10 |
3/8 |
1.8 |
20 |
|
ZBAO12/13 |
13 |
1/2 |
1.9 |
20 |
|
ZBAO15 |
15 |
5/8 |
2.1 |
20 |
|
ZBAO20 |
20 |
3/4 |
2.4 |
20 |
|
ZBAO22 |
22 |
7/8 |
2.5 |
20 |
|
ZBAO25 |
25 |
1 |
2.6 |
20 |
|
ZBAO30 |
30 |
11/8 |
2.9 |
20 |
|
ZBAO32 |
32 |
11/4 |
3 |
20 |
|
ZBAO35 |
35 |
13/8 |
3.1 |
20 |
|
ZBAO38 |
38 |
11/2 |
3.2 |
20 |
|
ZBAO40 |
40 |
15/8 |
3.4 |
20 |
|
ZBAO45 |
45 |
13/4 |
3.4 |
20 |
|
ZBAO50 |
50 |
2 |
3.6 |
20 |
|
ZBAO55 |
55 |
21/4 |
3.7 |
20 |
|
ZBAO60 |
60 |
23/8 |
3.8 |
20 |
|
ZBAO65 |
65 |
21/2 |
3.8 |
20 |
|
ZBAO70 |
70 |
23/4 |
4 |
20 |
|
ZBAO75 |
75 |
3 |
4.1 |
20 |
|
ZBAO80 |
80 |
31/8 |
4.3 |
15 |
|
ZBAO85 |
85 |
31/4 |
4.3 |
15 |
|
ZBAO90 |
90 |
31/2 |
4.5 |
15 |
|
ZBAO95 |
95 |
33/4 |
4.5 |
15 |
|
ZBAO100 |
100 |
4 |
4.6 |
15 |
|
ZBAO105 |
105 |
41/8 |
4.7 |
10 |
|
ZBAO110 |
110 |
43/8 |
4.7 |
10 |
|
ZBAO115 |
115 |
41/2 |
4.7 |
10 |
|
ZBAO120 |
120 |
43/4 |
4.8 |
10 |
|
ZBAO125 |
125 |
5 |
4.8 |
10 |
|
ZBAO130 |
130 |
51/8 |
5 |
10 |
|
ZBAO140 |
140 |
51/2 |
5.2 |
10 |
|
ZBAO150 |
150 |
6 |
5.2 |
10 |
