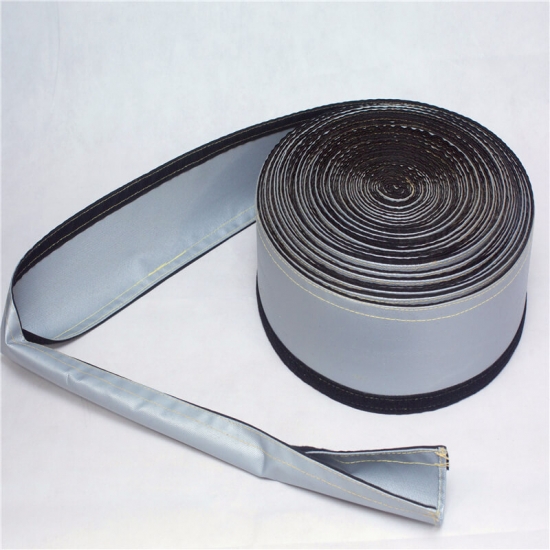

Fire Resistant Hose Protector Sleeve With Velcro
1.Product Introduction

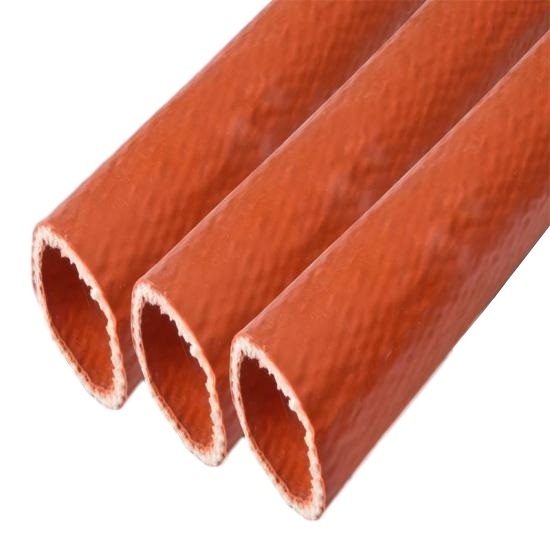

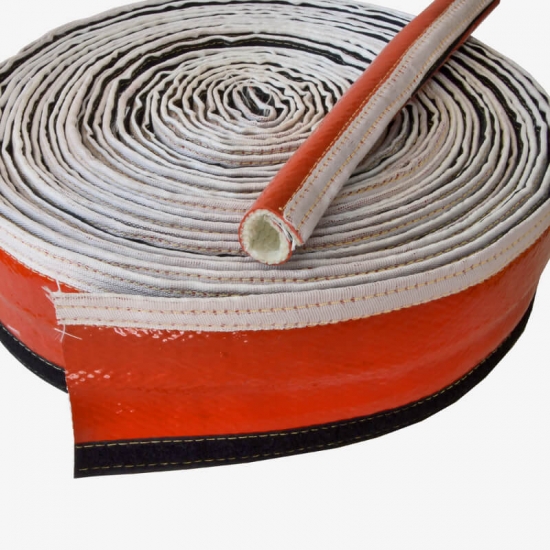

ZBAO Fire Sleeve Velcro made of Fire sleeve sewn with velcro hook-and-loop closure,which designed as a kind of heavy duty jacket to protect different kinds of hoses, wires and cables from the hazards of high heat and occasional flame.

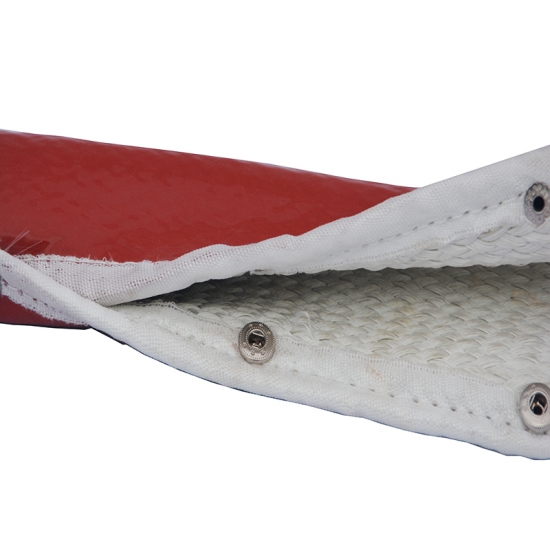

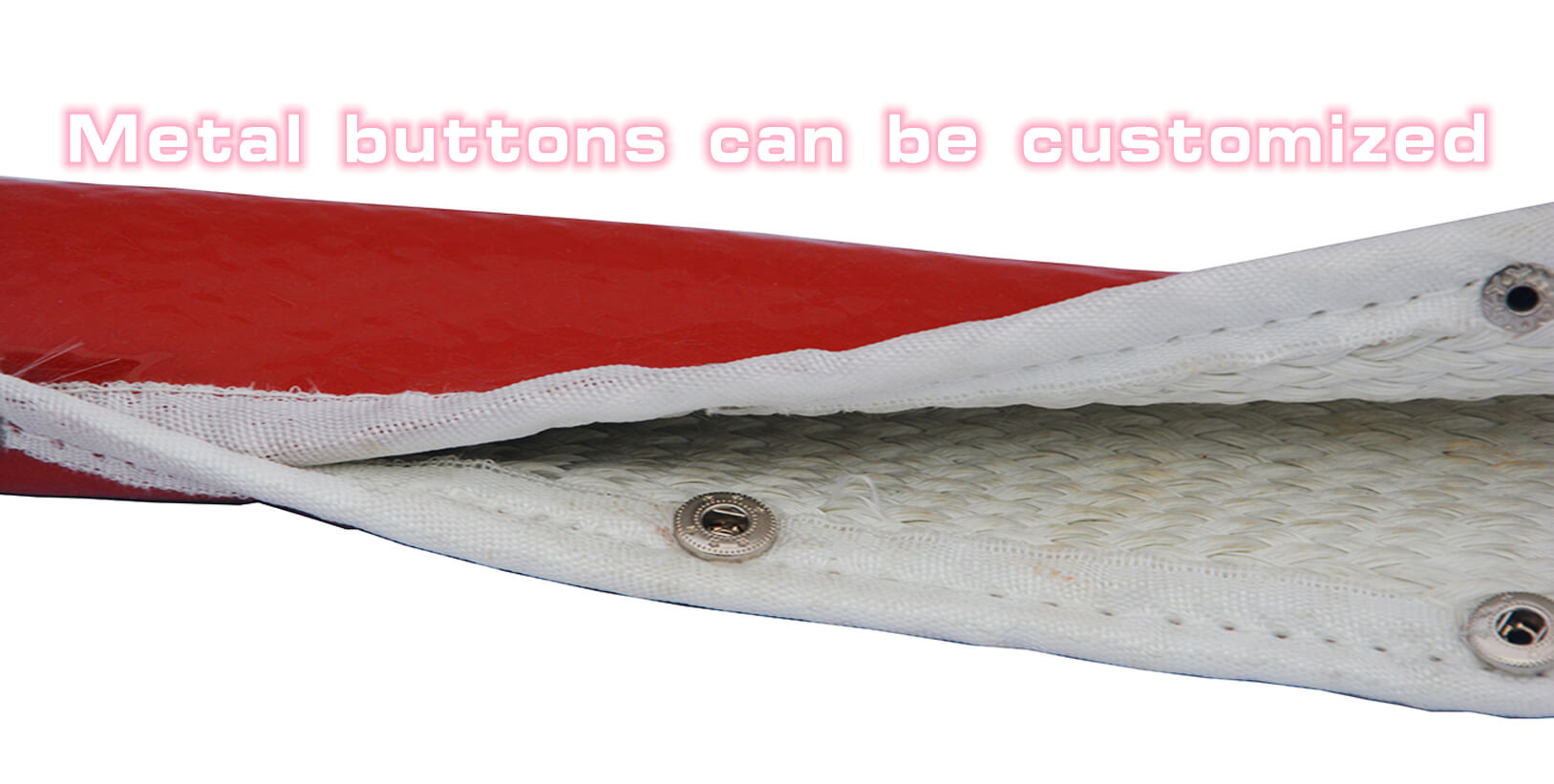

The Velcro construction is easy for installation and disassembly without disconnect the device or circuit.Good thermal insulation and fire proof performance make ZBAO Fire sleeve velcro reduce heat energy losses and protect employees from burning effectively.
2.Product Characters
|
Materials |
E-grade fiberglass and Silicone rubber |
|
Size/inner diameter |
10mm-115mm |
|
Rate voltage |
7kv--25kv,it depends on different size and wall thickness. |
|
Flammability |
VW-1 |
|
Working temperature |
Continues working under 260℃,short time exposure to 1650℃. |
|
Colour |

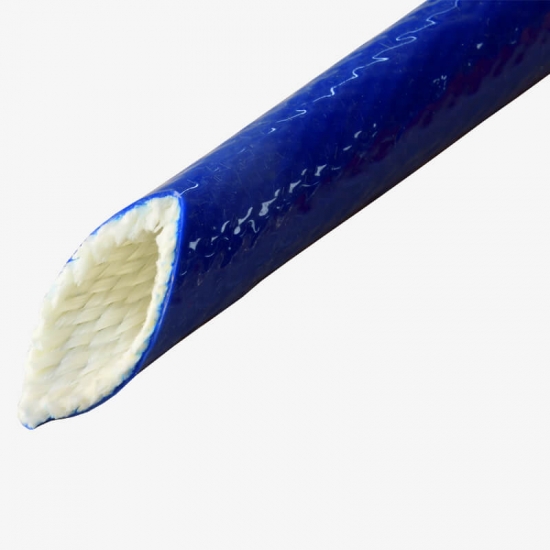

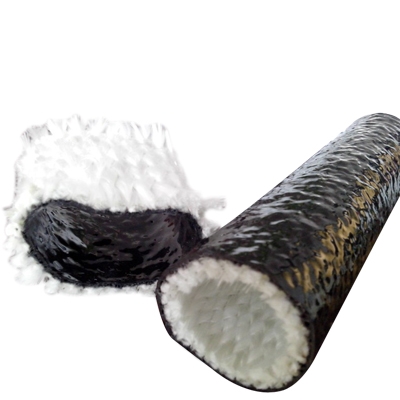

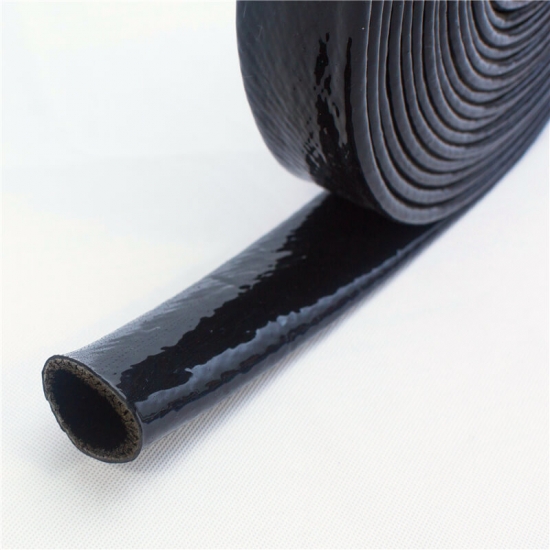

Standard iron oxide red,other colors blue,yellow,silver,black etc are available. |
|
Properties |
High temperature and flame resistant Thermal insulation Anti-fire,anti-aging Shield the splashing of the molten metal Abrasion resistant,water proof,oil proof,acid and alkali resistant |
|
Application Industries |
Metals(Iron & steel), Foundries, Transportation(Aerospace, Auto, Rail vehicles, Heavy Equipment, Marine), Oil & Gas, Power industry, etc. |
|
How to use |
Cover fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer. |
|
Purpose |
Protect hose,wires,lines and cables Reduce heat energy losses Protect employees from burning effectively |
3.Standard Specifications
|
Part No. |
Inner Dia. |
Wall Thickness |
Roll Length/mtr |
|
|
mm |
inch |
|||
|
ZBAOSF-VL-10 |
10 |
3/8 |
2.1 |
20 |
|
ZBAOSF-VL-15 |
15 |
5/8 |
2.4 |
20 |
|
ZBAOSF-VL-20 |
20 |
3/4 |
2.6 |
20 |
|
ZBAOSF-VL-25 |
25 |
1 |
2.9 |
20 |
|
ZBAOSF-VL-30 |
30 |
1 1/8 |
3.1 |
20 |
|
ZBAOSF-VL-35 |
35 |
1 3/8 |
3.4 |
20 |
|
ZBAOSF-VL-40 |
40 |
1 5/8 |
3.4 |
20 |
|
ZBAOSF-VL-45 |
45 |
1 3/4 |
3.6 |
20 |
|
ZBAOSF-VL-50 |
50 |
2 |
3.7 |
20 |
|
ZBAOSF-VL-55 |
55 |
2 1/6 |
3.8 |
15 |
|
ZBAOSF-VL-60 |
60 |
2 3/8 |
4 |
15 |
|
ZBAOSF-VL-65 |
65 |
2 1/2 |
4.1 |
15 |
|
ZBAOSF-VL-70 |
70 |
2 3/4 |
4.3 |
15 |
|
ZBAOSF-VL-75 |
75 |
3 |
4.3 |
15 |
|
ZBAOSF-VL-80 |
80 |
3 1/8 |
4.5 |
15 |
|
ZBAOSF-VL-85 |
85 |
3 3/8 |
4.5 |
15 |
|
ZBAOSF-VL-90 |
90 |
3 1/2 |
4.6 |
15 |
|
ZBAOSF-VL-95 |
95 |
3 3/4 |
4.6 |
15 |
|
ZBAOSF-VL-100 |
100 |
4 |
4.7 |
10 |
|
ZBAOSF-VL-105 |
105 |
4 1/8 |
4.7 |
10 |
|
ZBAOSF-VL-110 |
110 |
4 3/8 |
4.8 |
10 |
|
ZBAOSF-VL-115 |
115 |
4 1/2 |
4.8 |
10 |

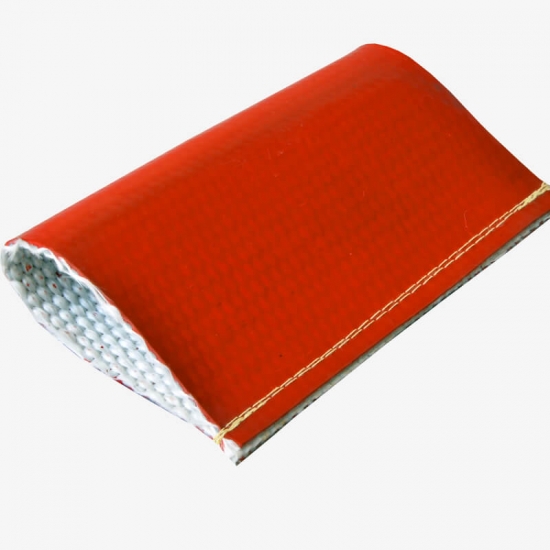

4.EAF Cable Cover--Fire Sleeve Velcro made of silicon rubber coated fiberglass fabric
Withstand the heat, abrasion, impacts, flame and molten metal splash normally encountered in AC and DC EAF operations. Even splashes encountered during wet charges are repelled, allowing for continued operation of the EAF without unexpected cable failures.
Hook and loop closure system to enable installation without disconnecting the water cooled cables.
|
ZBAO Part No. |
ZBSF-VL-F |
|
Mteraial |
Silicon rubber Fiberglass Fabric |
|
Thickness. |
3.0mm |
|
Inner Dia. |
≤310mm |
